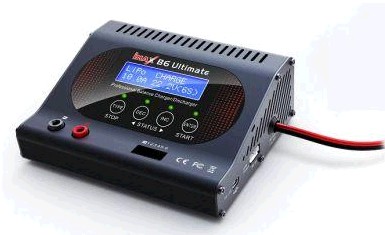

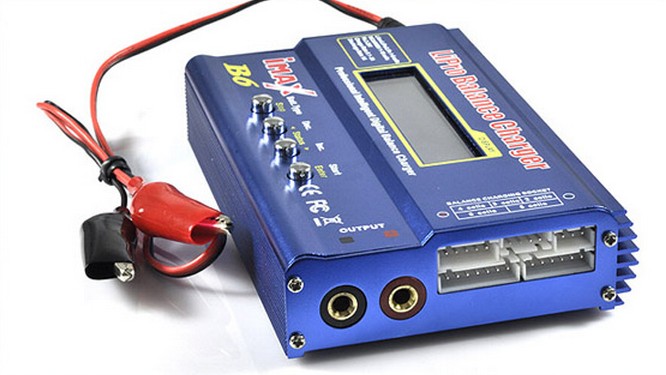

IMAX B6 Ultimate charger已大量到貨

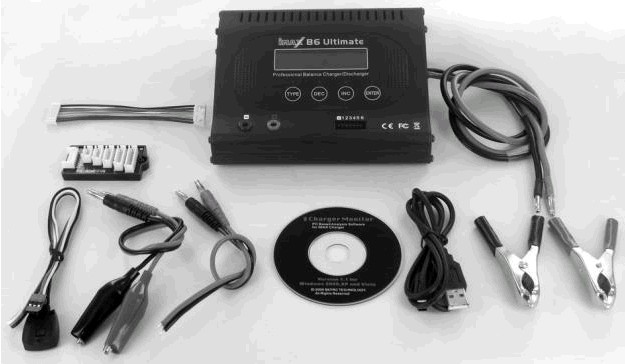

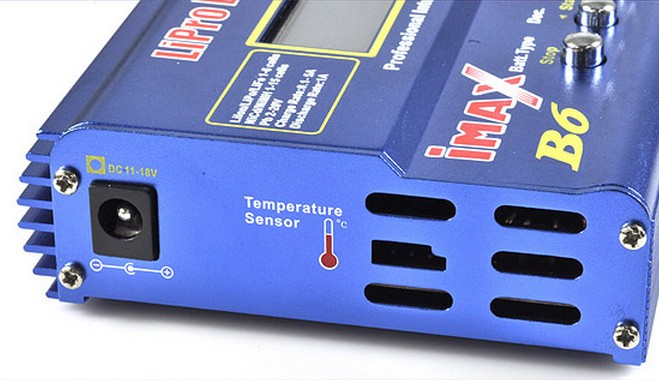

Here is the new IMAX B6 Ultimate charger which offer maximum 200W charge power and maximum 10A charge current!!! This charger is suitable for LiPo, LiFe, NI-MH, NI-CD and Lead- Acid Batteries and it comes with the temperature sensor cable which provides safely monitor and terminate charging if temperature exceeds set parameters. Also computer connection kit and USB cable is provided so you can keep track the changing status as well as the health of your battery pack through the computer. Order one and enjoy the most advanced charging technology now.
Feature: High performance microprocessor
- Internal independent lithium balancer
- Adaptable to various types of lithium battery
- The automatic charge termination program is based on the principle of the Delta-peak voltage detection. The upper limit of the charging current can be set up when charging NiCd or NiMH battery; If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value
- Processing time limit
- The maximum five batteries' data can be stored for users' convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting
- B6 Ultimate features the so-called AUTO function that set the feeding current during the process. It can prevent the overcharging. It can disconnect the circuit automatically and alarm once detecting any malfunction. The programs are controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble
- During the process of discharging, B6 Ultimate can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal
- Purposes to charge Lithium battery varies, ‘fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery
- Input power monitoring
- Cyclic charging / discharging
- For: LiPo, NI-MH, NI-CD and Lead- Acid Batteries
Specification:
Operating voltage range: DC11.0-18.0 Volt
- Circuit power: Max. charge power 200w; Max. discharge power 25w
- Charge current range: 0.1-10.0A
- Discharge current range: 0.1-5.0A
- Current drain for balancing Li-po: 200mAh/cell
- Li-ion/Fe/Polymer cell count: 1-6 cell
- NiCd/NiMH battery cell count: 1-18 cells
- Pb battery voltage: 2v-24
- Net Weight:607g
- Dimensions: 150×116.5×53mm
|
