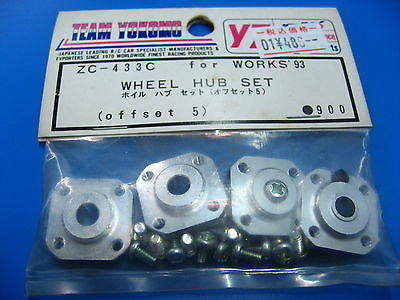

Yokomo Works 93 方形adaptor 改12mm 六角

[複製鏈接]
 樓主| RGM-111 發表於 2017-2-2 15:49:15 | 顯示全部樓層 |閱讀模式

遊客登錄

您需要 登錄 才可以下載或查看,沒有帳號?新玩家註冊

x
如題,

有冇C兄 , 記得點 改 adaptor / 用 CVD or 萬向改
有埋 材料 牌子/model 就perfert

Many thank's

依稀記得 MIP 好像有出過 12mm Hex CVD for Works 的
rk2 發表於 2017-2-4 16:06:23 | 顯示全部樓層
師兄,你意思係唔用呢粒四方 adaptor,而改為主流的六角接合器?
rk2 發表於 2017-2-4 16:33:54 | 顯示全部樓層

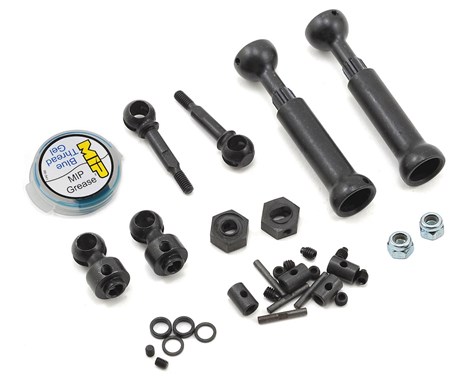

可以參考下呢個,有可能合你要求。但尺寸還是要細心對比一下的。
https://www.amainhobbies.com/mip-xduty-keyed-rear-cvd-kit-slash-slash-4x4-mip10130/p179493
 樓主| RGM-111 發表於 2017-2-4 18:45:30 | 顯示全部樓層
rk2 發表於 2017-2-4 16:06
師兄,你意思係唔用呢粒四方 adaptor,而改為主流的六角接合器?

系啊 ^^

shungyan 發表於 2017-9-8 12:29:26 | 顯示全部樓層

I have a YZ10 91 works change to 12mm hex hub. I use DB01 (yeah racing) 78mm Universial swing shaft in the front with changing the wheel side part to BD5. Still ok to go. For the rear, I still looking for solution. Currently using Top force dog bone but need to insert some o-ring or sponge in to the outdrives to keep the dog bone in position. 74-76mm CVD will fit the rear. Team C TM4 has 74mm Universal swing shaft but not sure the diff side fit or not. If you could fine MIP type CVD, it need 79mm (measurement is different as the joint location is not the same). Another solution which yet to try is combine the top force universal swing shaft and DB01's rear. A long wheel shaft plus 70mm swing shaft. But then the whole shaft will be push toward the diff side and need a 3mm width washer to fit in the gap.
 樓主| RGM-111 發表於 2017-9-8 12:44:41 | 顯示全部樓層
shungyan 發表於 2017-9-8 12:29
I have a YZ10 91 works change to 12mm hex hub. I use DB01 (yeah racing) 78mm Universial swing shaf ...

Dear Brother,

Any detailed photo, / sketch can for refernece.

Thank's very much
shungyan 發表於 2017-9-8 14:11:24 來自手機 | 顯示全部樓層
Front cvd
shungyan 發表於 2017-9-8 14:12:16 來自手機 | 顯示全部樓層

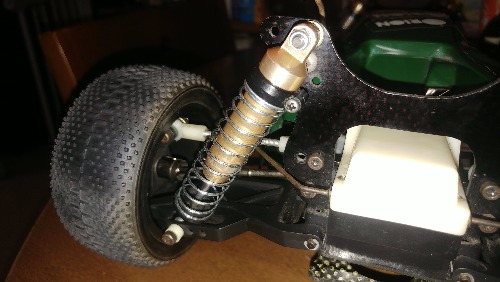

Rear side
shungyan 發表於 2017-9-8 14:13:44 來自手機 | 顯示全部樓層

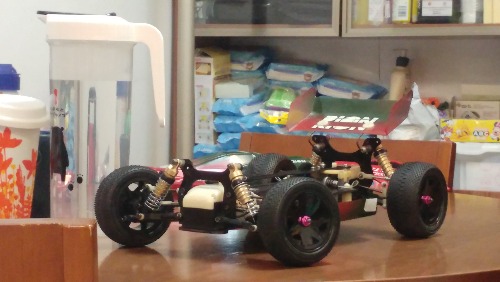

完成品!
 樓主| RGM-111 發表於 2017-9-8 16:02:38 | 顯示全部樓層
shungyan 發表於 2017-9-8 12:29
I have a YZ10 91 works change to 12mm hex hub. I use DB01 (yeah racing) 78mm Universial swing shaf ...

即係我冇理解錯的話,
前輪 - 用DB01 78mm 萬向,  再於萬向頭換上Yokomo DB5(萬向頭?)
後輪 - (a) 用 TOP foce 成份 尾狗骨, 再在狗骨杯 攝 o-ring 防移位 / 換長2mm dog bone ?
          (b) MIP Yokomo CVD 79mm direct fit ?
          (c) Top force 萬向軸+ DB01 尾萬向頭 ?
....
last 果緞..睇唔明 XD

Thank's
shungyan 發表於 2017-9-8 16:11:54 來自手機 | 顯示全部樓層
Ching! 冇错! 提一提尾係用狗骨而唔係萬向(打住先)! 如果有tm4 74mm 萬向而個波波位入倒個珠差! 咁車轆side用top force 或bd5 就fit la! 仲有我部係870c 改咗91 works 手脚, ching 要make sure 93 works ㄧ様woo. 而如果有mip cvd, 79mm 就fit 哂! 轆嗰邊用pro4 應ok
shungyan 發表於 2017-9-8 16:12:49 來自手機 | 顯示全部樓層
59burst.blogspot.hhttp://59burst.blogspot.hk/2015/09/yokomo-cvd-bones-tips.html?m=1k/2015/09/yokomo-cvd-bones-tips.html?m=1
shungyan 發表於 2017-9-8 16:20:06 來自手機 | 顯示全部樓層
) 用 TOP foce 成份 尾狗骨, 再在狗骨杯 攝 o-ring 防移位 / 換長2mm dog bone ? 用狗骨的話, D o-ring 係攝係杯入面等條狗骨唔好跌出嚟! 我另一想係用top force 萬向(diff side)駁db01 後萬向(wheel)! 因為db01 後萬向wheel side 係長D! 如果就咗六角pin 位, 係要係萬向同尾hub 中間攝3mm介子! 變相將萬向頂入3mm
 樓主| RGM-111 發表於 2017-9-8 23:36:02 | 顯示全部樓層
shungyan 發表於 2017-9-8 16:12
59burst.blogspot.hhttp://59burst.blogspot.hk/2015/09/yokomo-cvd-bones-tips.html?m=1k/2015/09/yokomo- ...

Thank's ,

the web site with photo compare is useful !
